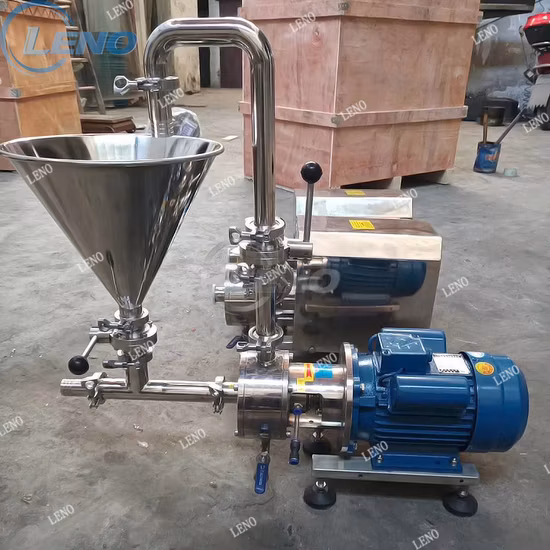

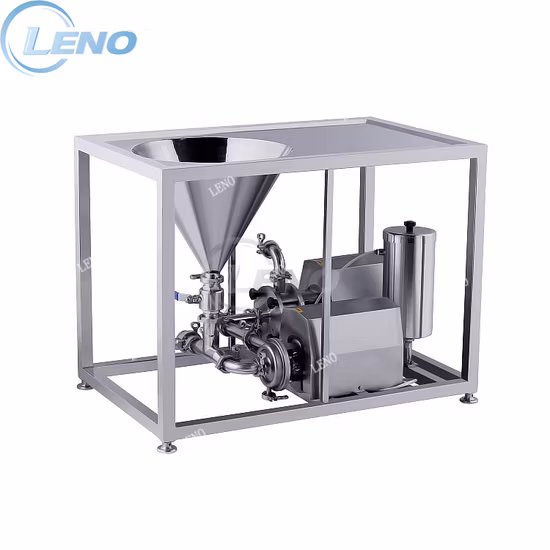

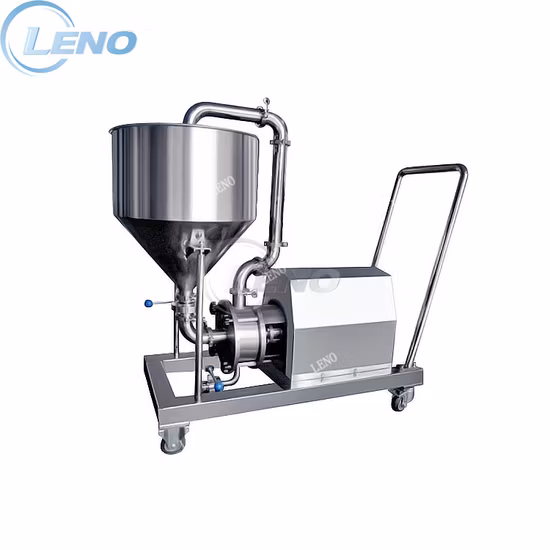

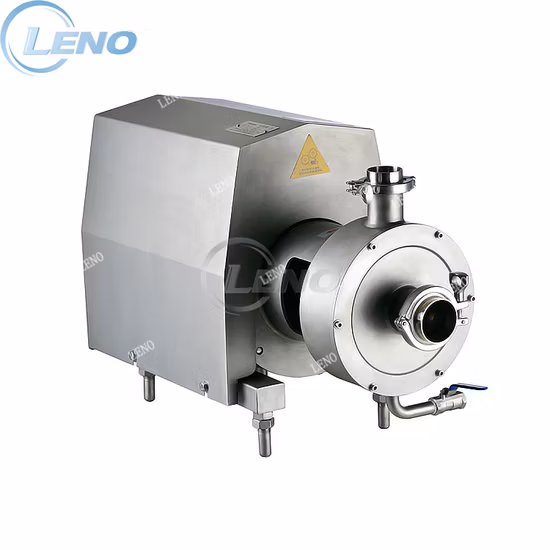

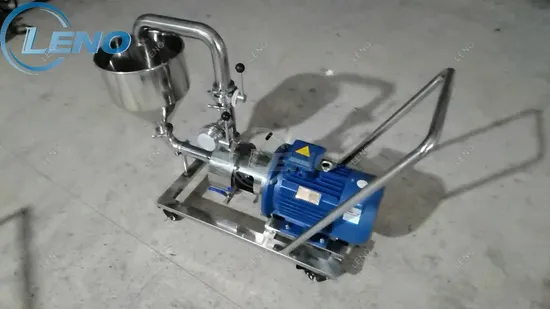

Stainless Steel Liquid Paste Cosmetic Shampoo Homogenizer High Shear Pump Mixing Emulsifier
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry. 1. Chemical Industry: Fat, Dissolven;
Basic Info
| Model NO. | LNX2008 |
| Application Area | Chemical |
| Layout Type | Horizontal |
| Mixing Drum Shape | Conical |
| Additional Capabilities | Milling |
| Operating type | Continuous Operating |
| Condition | New |
| Material | Stainless Steel 304 / SUS316L |
| Usage | Mixing Products |
| Speed | 0-3400rpm |
| Homogenizer | Stator Homogenizing |
| Transport Package | Plywood Case |
| Specification | 500-20000L/H |
| Trademark | LENO |
| Origin | China |
| Production Capacity | 100 Set/Month |
Product Description
| Profile type | Stainless steel liquid paste cosmetic shampoo emulsifier high shear mixing homogenizer pump | ||
| Material | SS304 or SS316L | ||
| Capacity | 0-130T (Customized) | ||
| Pressure | 0-2Bar | ||
| Viscosity | 1-1000000pas | ||
| Rotors teeth | Fine/Middle/rough | ||
| Temperature | 0-100 celsius degree | ||
| Installation | Movebale or Fixed | ||
| Connection | Clamp union flange | ||
| Motor type | Normal | Ex-proof | inverter |
| Speed | 0-3400RPM | ||
RTS Default Specification | LNP-1-100 2.2KW SUS304 (If you need other specifications, please contact us first. Thank you.) | ||
| Technical Parameters | ||||
| Model | capacity (T/H) | Speed(RPM) | out Pressure(bar) | power(KW) |
| LNP-1-80 | 0-1.5 | 2900/3400 | ≤2Bar | 1.5 |
| LNP-1-100 | 0-3 | 2900/3400 | 2.2 | |
| LNP-1-130 | 0-4 | 2900/3400 | 4.0 | |
| LNP-1-140 | 0-5 | 2900/3400 | 5.5 | |
| LNP-1-165 | 0-8 | 2900/3400 | 7.5 | |
| LNP-1-180 | 0-12 | 2900/3400 | 11 | |
| LNP-1-185 | 0-18 | 2900/3400 | 15 | |
| LNP-1-200 | 0-25 | 2900/3400 | 22 | |
| LNP-1-210 | 0-35 | 2900/3400 | 30 | |
| LNP-1-230 | 0-50 | 1450/1700 | 45 | |
| LNP-1-245 | 0-75 | 1450/1700 | 55 | |
| We can customize the equipment according to your requirements. | ||||
1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
4. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.
| Q1 | Are you trade or manufacturer? |
| A | We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
| Q3 | What's the difference between Ready-To-Ship and Customized products? |
| A | Some of RTS standard products are in stock and ready to ship in 2-3 days. |
| Q4 | What is the payment terms? |
| A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 | How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
